Interface |

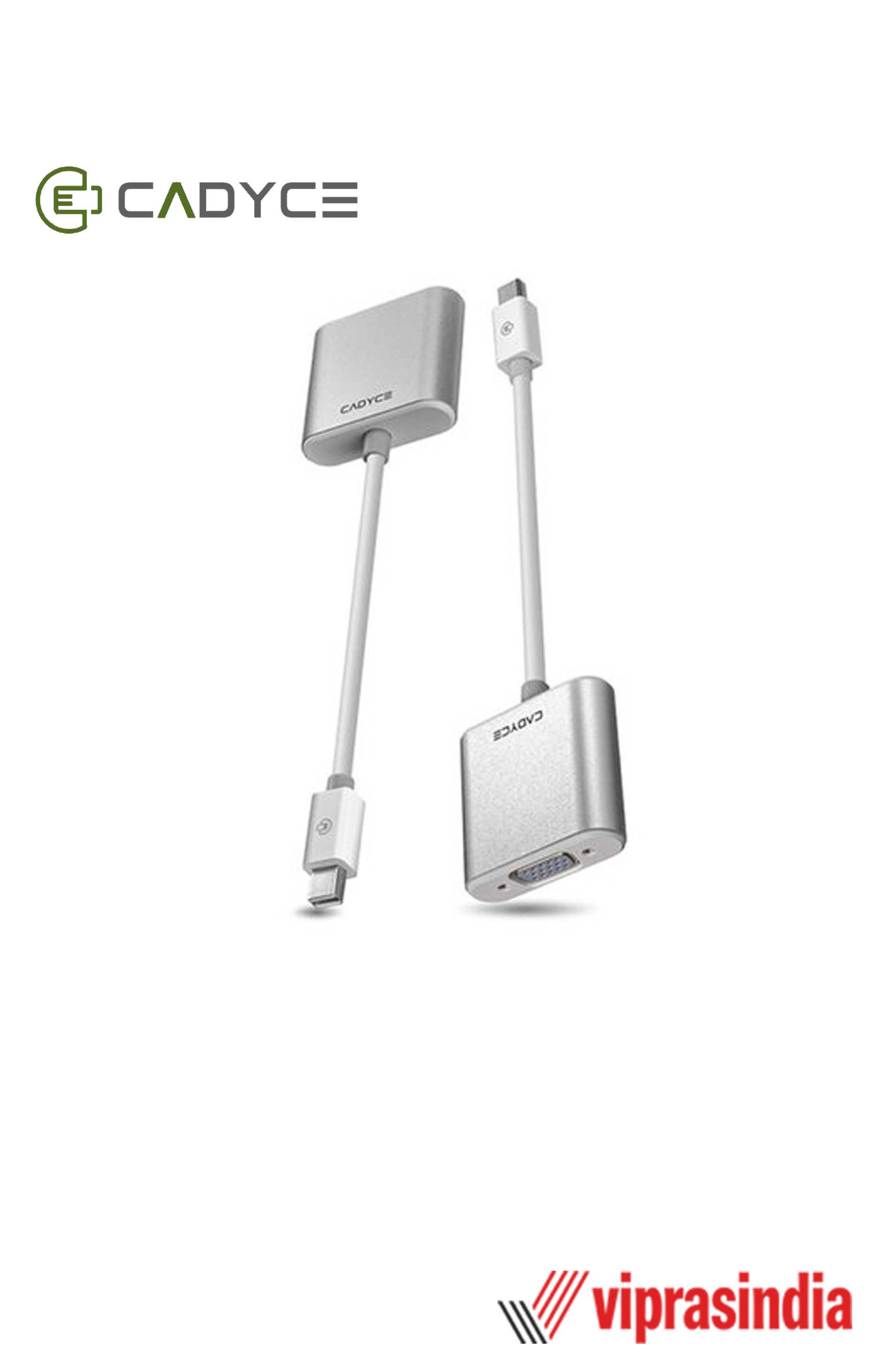

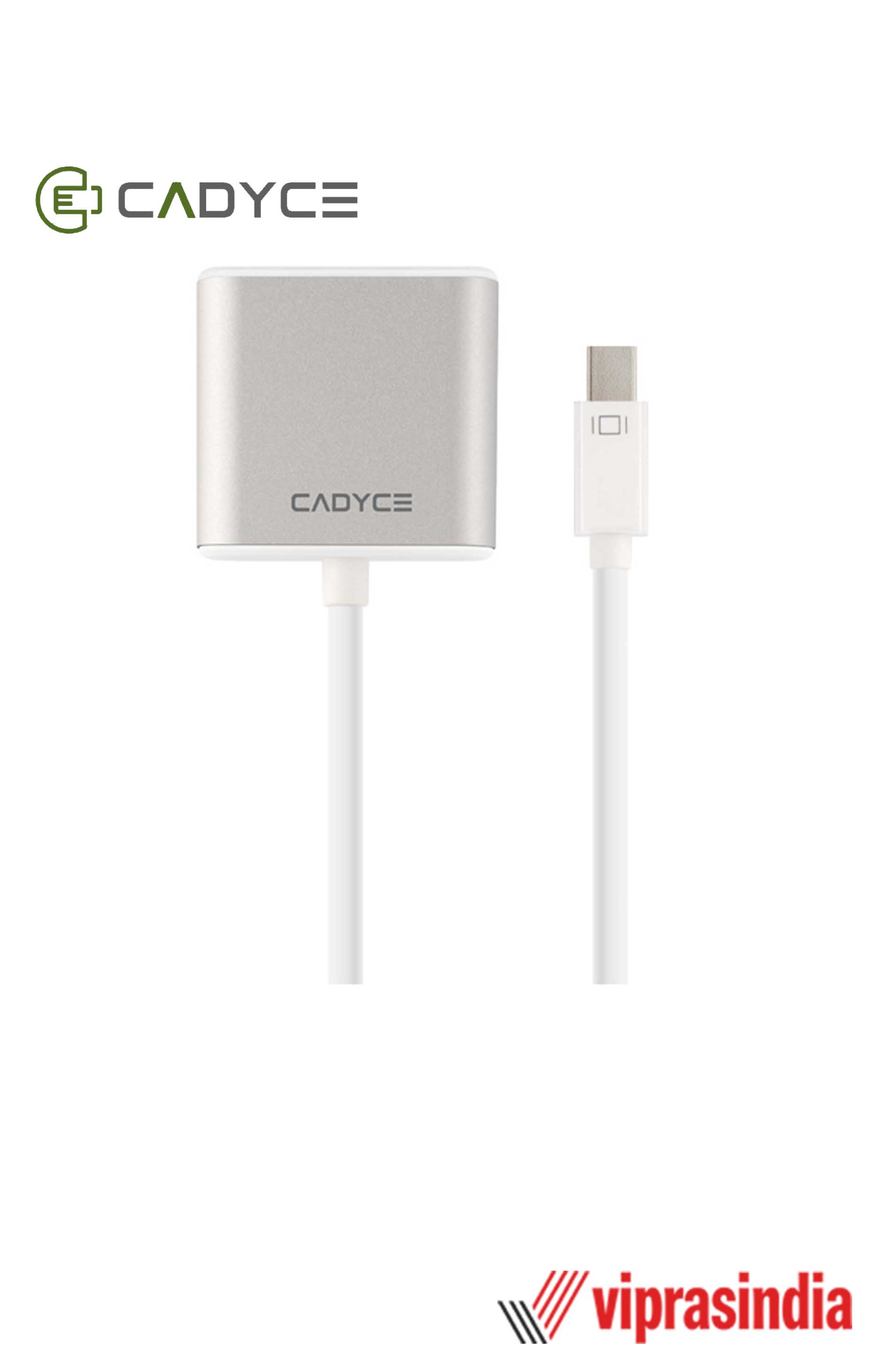

Mini DP to VGA |
---|---|
Total Length |
220.0 + 5.0 mm |
Connector Dimension |
VGA side: L*W*H=42.0*45.0*14.0 mm |
Compliance |
Compliance with DisplayPort specification V1.1a at 1.62/2.7Gbps data rate (Low bit rate/ High bit rate) |
Protocol |
Supports DPCD Rev.1.1 & HDCP 1.3 with HDCP key embedded |
Resolution |
Supports up to WUXGA (1920X1200) and 1080p @60Hz (Full HD) |
Color |
Supports Digital Video Output in 18/24/30 (deep color) bits format. (6 – bit, 8 – bit, 10 bit per color RGB color format) |
Operating Temperature |
10 degree centigrade to +40 degree centigrade |
Packing |
Mini DisplayPort Adapter * 1 & User Manual * 1 |
Regulation |
FCC, CE. |
EAN/UPC Code Country of Origin |
7.00371E+11 China |
• Supports plug and play
• No Extra drivers needed
• Supports Windows XP, Vista, 7/8/10 and Mac OS X v10.5 or later
• Supports up to WUXGA (1920X1200) and 1080p @60Hz (Full HD)
