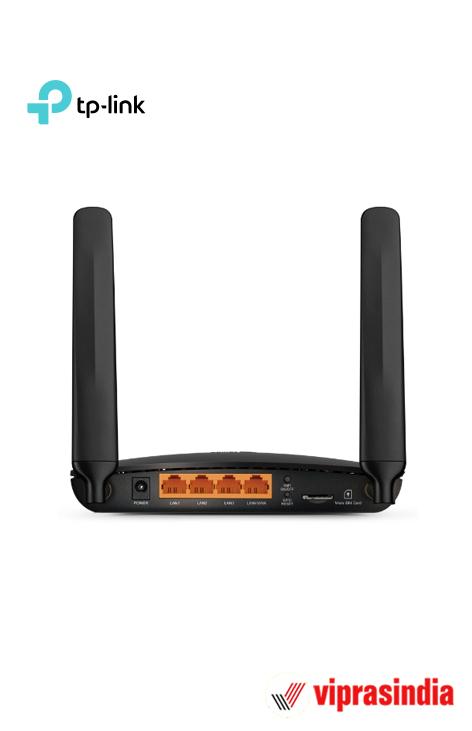

Ports | 3× 10/100 Mbps LAN ports, 1× 10/100 Mbps LAN/WAN Port, 1× Micro SIM Card Slot | |
---|---|---|
Button | WPS/RESET Button, WiFi ON/OFF Button | |
External Power Supply(EU) | 9V/0.85A | |
Dimensions ( W x D x H ) | 6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm) | |
Antenna Type | 2× Detachable External 4G LTE Antennas |
WIRELESS FEATURES | ||
---|---|---|
Wireless Standards | IEEE 802.11b, 802.11g, 802.11n | |
Frequency | 2.4 GHz | |
Signal Rate | 300 Mbps at 2.4 GHz | |
Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm |
|
Transmit Power | <20 dBm (2.4 GHz) | |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
|
WAN Failover | Yes | |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions | |
Network Type | 4G: FDD-LTE Cat4 (800/900/1800/2100/2600 MHz), TDD-LTE (2300/2500/2600 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz) |
SOFTWARE FEATURES | ||
---|---|---|
Quality of Service | WMM, QoS | |
Operating Modes | 3G/4G Router, Wireless Router | |
Management | Access Control, Local Management, Remote Management | |
WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) | |
DHCP | Server, Client, DHCP Client List, Address Reservation | |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | |
Dynamic DNS | TP-Link DDNS, DynDns, NO-IP | |
VPN Pass-Through | PPTP, L2TP, IPSec | |
Access Control | Parental Controls, Local Management Control, Host List, Access Control |
|
Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding | |
Protocols | Supports IPv4 and IPv6 | |
Guest Network | 2.4 GHz Guest Network | |
VPN Server | PPTP VPN, OpenVPN |
OTHERS | ||
---|---|---|
Certification | CE, RoHS | |
Package Contents | 300Mbps Wireless N 4G LTE Router TL-MR6400 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
|
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers Micro SIM Card |
|
Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~60? (-40? ~140?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensinC |
Country of Origin | China |
